Key Specifications
Capacity: 40,000 liters (10,567 gallons) – equivalent to filling 16 standard swimming pools (2,500L each).
Dimensions: Typically 12–14 meters in length, 2.5 meters in width, with a height under 4 meters for bridge clearance.
Weight: Empty weight ~8–10 tons; gross vehicle weight (GVW) up to 40 tons, depending on axle configuration.
Structural Design & Innovations
A. Tank Construction
Material:
Stainless Steel (SS316): Corrosion-resistant for long-term use with potable water or chemicals.
Polyethylene (Rotomolded): Lightweight, rust-proof alternative for non-pressurized applications.
Internal Features:
Baffle System: Reduces sloshing by 70%, enhancing stability during transit.
Multi-Chamber Design: Optional compartmentalization for transporting different liquids (e.g., water + fire retardant).
B. Chassis & Axle System
4–6 Axles: Air suspension or tandem mechanical axles to distribute load (e.g., 8–12 tons/axle under EU Directive 96/53/EC).
Lift Axles: Retractable axles to minimize tire wear when empty.
Reinforced Frame: High-tensile steel with anti-corrosion coating for harsh environments (e.g., coastal or mining areas).
C. Safety & Automation
Smart Monitoring: IoT sensors for real-time tracking of tank levels, temperature, and leaks.
Anti-Rollover System: Gyroscopic sensors alert drivers to risky lateral shifts.
Emergency Valves: Automated pressure relief and spill containment mechanisms.
Operational Advantages
Rapid Deployment:
High-flow pumps (1,200–1,500 L/min) enable fast filling/emptying.
Rear-mounted hydraulic ramps for easy hose access.
Multi-Industry Adaptability:
Agriculture: Irrigation for farms.
Firefighting: 40,000L capacity supports 30–40 minutes of continuous fire hose operation.
Construction: Dust suppression on mining sites (covers ~5 km of road per load).
Regulatory Alignment:
Complies with ADR 2019 (Europe) for non-hazardous liquids and NFPA 1901 (firefighting standards).
Leading Manufacturers & 2025 Trends
Emerging Technologies:
Hydrogen Fuel Cells: Pilot models using H₂ for auxiliary power, reducing diesel dependency.
Self-Cleaning Tanks: UV-C sterilization systems for potable water hygiene.
Safety Protocols & Maintenance
Pre-Transport Checks:
Verify tank seals, valve integrity, and sensor calibration.
Balance liquid distribution using onboard telemetry.
Driver Training:
Certifications in liquid dynamics (e.g., avoiding "surge" effects during braking).
Mandatory GPS route planning to avoid low-clearance zones.
Environmental Compliance:
Spill kits and secondary containment systems mandated in ecologically sensitive areas.
Case Study: In 2024, a 40,000L trailer by Scheuerle was deployed in Australian wildfire zones, delivering 480,000L/day to remote firefighting teams, reducing response times by 40%.
This trailer exemplifies the fusion of scale, precision, and innovation in modern liquid logistics. For CAD schematics or region-specific compliance guides, feel free to ask! 🌍🚛💦

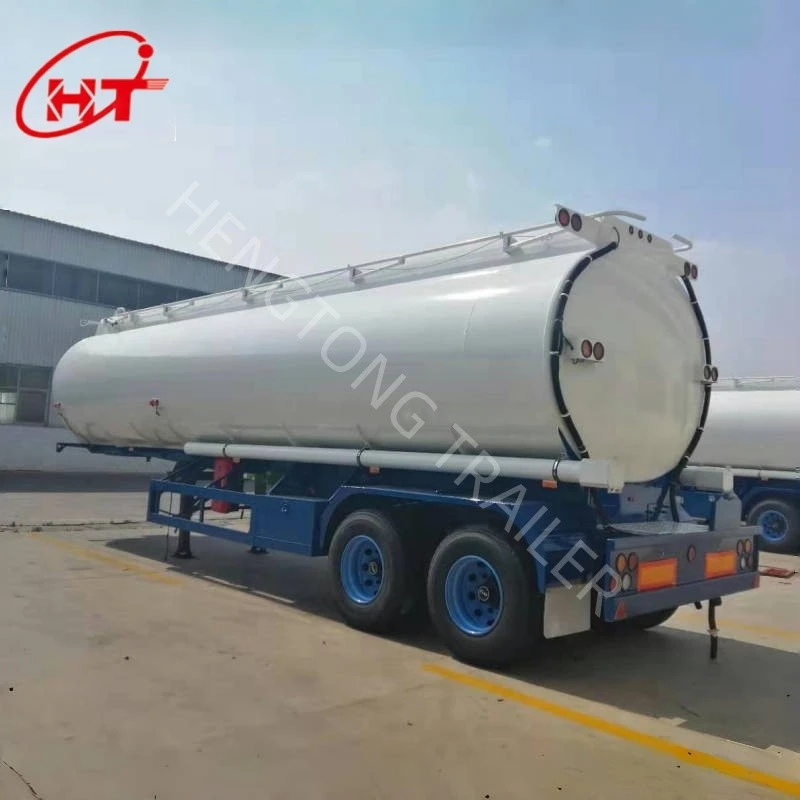

Example photo
parameter list
|
TANKER BODY |
||||
|
COMPARTMENT |
SINGLE/2/3/4/5/6/7 COMPARTMENTS OPTIONAL |
TEST |
OSTATIC TEST TO 5 PSI (35 KPA)ON EACH COMPARTMENT |
|
|
TANKER BODY |
5MM OR 6MM/Q235 CARBON STEEL |
DISCHARGE VALVE: |
VALVE WITH DUST COVER,EURO STANDARD VALVE |
|
|
END PLATE |
5MM OR 6MM/Q235 CARBON STEEL |
BOTTOM VALVE: |
2 PCS WITH PNEUMATIC CONTROLLER |
|
|
MANHOLE COVER |
SAFETY MANHOLE WITH BREATH VALVE,2PCS, DIAMETER 500MM. |
WELDING STANDARD: |
ELDING ARE TO BE DONE BY QUALIFIED WELDER PER CABLE NATIONAL STANDARD |
|
|
DISCHARGIN PIPE |
3 OR 4 INCH RUBBER HOSE,2PCS,6M/EACH |
TOP TANK WALK |
COMMON OR SPECIAL DESIGN |
|
|
CHASSIS |
||||
|
AXLES |
2 OR 3 AXLES,13T/16T,BPW/FUWA/HUAJING BRAND |
|||
|
MAIN BEAM |
Q345CARBON STEEL ,WELDING DESIGN |
|||
|
SUPPORT LEGS |
JOSTOR CHINA BRAND 28T |
|||
|
SUSPENSION |
MECHANICAL SUSPENSION/GERMANY OR AMERICA TYPE/AIR SUSPENSION |
|||
|
LEAF SPRING |
90(W)MM*13(THICKNESS)*10 LAYER OR OTHER |
|||
|
BRAKING SYSTEM |
WABCO RE6 RELAY VALVE;T30/30+T30 SPRING BRAKE CHAMBER,40L AIR CHAMBER |
|||
|
TIRE |
12.00R22.5/31580R22.5/11.00R20/12.00R20 BRAND CAN BE OPTIONA |
|||
|
RIM |
9.00-22.5/8.00-20/8.5-20 CHINA BRAND |
|||
|
KING PIN |
2 OR 3.5 INCH BOLT-IN KING PIN |
|||
|
ABS |
OPTIONAL |
|||
|
PAINTING |
COMPLETE CHASSIS SAND BLASTING TO CLEAN RUST,1 COAT OF ANTICOR ROSIVE PRIME,2 COATS OF FINAL PAINT |
|||
|
ACCESSORIES |
ONE TOOL BOX |
|||
|
SHIPPING TERMS |
BY BULK CARGO,RORO OR 40HQ OR 40FT FR CONTAINER |
|||
