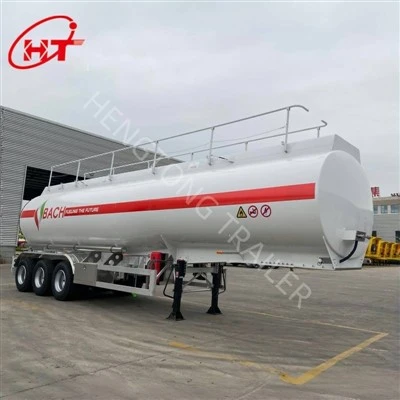

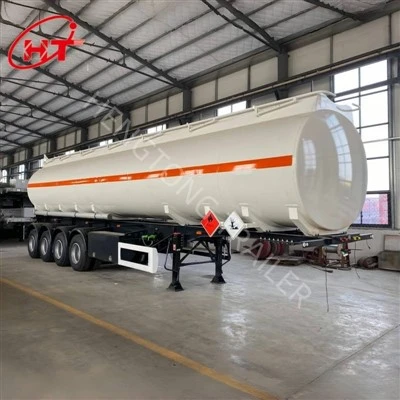

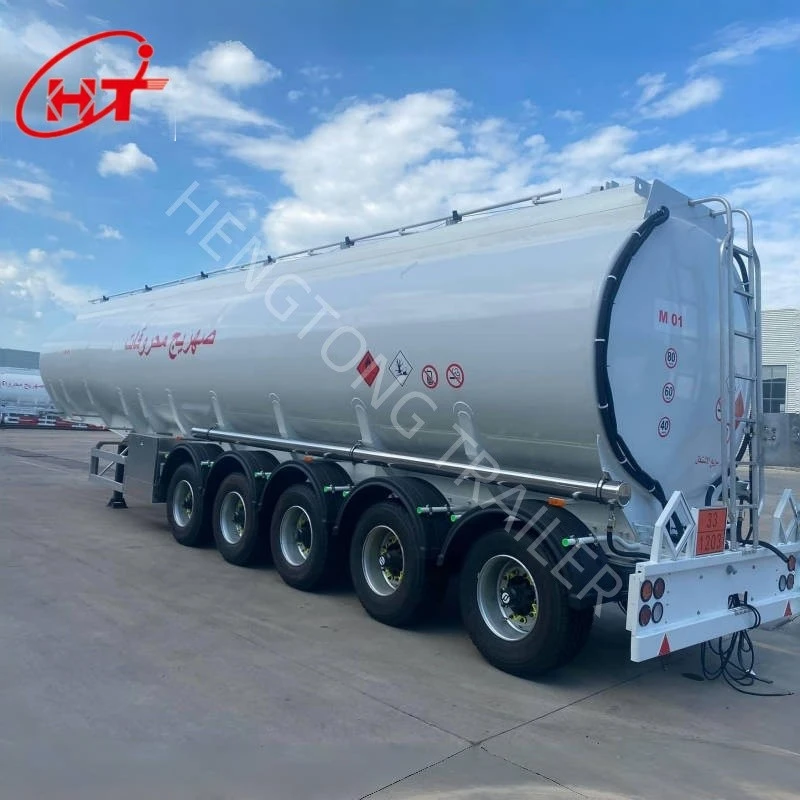

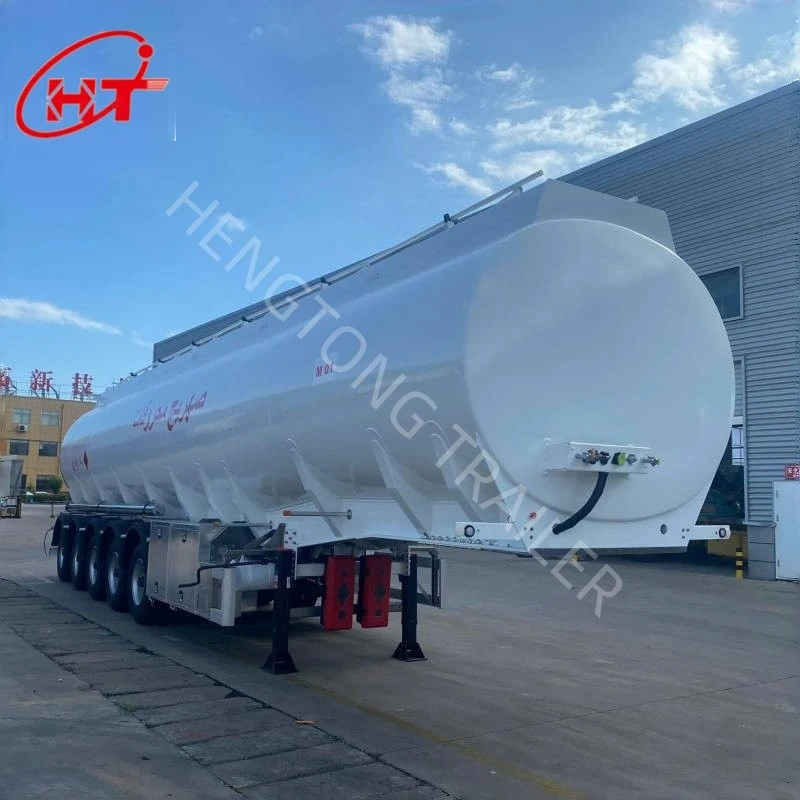

Oil Tank Semi Trailer



 Oil tank semi-trailers are specially designed for transporting fluids such as gasoline, diesel, chemical liquids, and edible oil. They are suitable for fuel logistics, the chemical industry, and food transportation.





1. Tank
- Material: High-strength steel (Q345/16MnR), stainless steel (304/316L), or aluminum alloy (5083), with an internal corrosion-resistant coating (e.g., polyurethane or epoxy resin).
- Compartmental Design: Multiple independent compartments (2-5) capable of simultaneously carrying different liquids.
- Anti-sloshing Design: Wave-shaped baffles or honeycomb baffles minimize liquid sloshing during transport.

2. Chassis Frame
- Reinforced low-alloy steel frame with a rated load capacity of 25-40 tons.
- Axle Configuration: 2-4 axles with air suspension (e.g., BPW or SAF axles) for load distribution and stability.
- Landing Gear: Heavy-duty retractable outriggers (JOST or FUWA brands) with safe removal.

3. Safety System
- Pressure/Vacuum Relief Valve: Meets API 2000 standards. - Emergency Shutoff: Remotely controlled foot valve (butterfly or cam lock).
- Static Dissipation: Conductive tires, grounding cable, and anti-static lining.
- Fire Protection: Optional foam injection nozzles or an onboard fire extinguisher.





1. Top Loading
- DN200/250mm sealed manhole with vapor recovery system (compliant with EPA/CARB emission standards).
- Explosion-proof flame arrester for flammable liquids.

2. Bottom Discharge System
- API-certified bottom loading arm with dry-break connection.
- Pneumatic or hydraulic actuation for fast valve operation.

3. Pump and Metering
- Gear pump (flow rate 200-800 l/min) or centrifugal pump for high-viscosity fluids.
- Mass flow meter (Endress+Hauser, Emerson) with an accuracy of ±0.3% and digital tracking.







TANKER BODY
COMPARTMENT	SINGLE/2/3/4/5/6/7 COMPARTMENTS OPTIONAL		TEST	OSTATIC TEST TO 5 PSI (35 KPA)ON EACH COMPARTMENT
TANKER BODY	5MM OR 6MM/Q235 CARBON STEEL		DISCHARGE VALVE:	VALVE WITH DUST COVER,EURO STANDARD VALVE
END PLATE	5MM OR 6MM/Q235 CARBON STEEL		BOTTOM VALVE:	2 PCS WITH PNEUMATIC CONTROLLER
MANHOLE COVER	SAFETY MANHOLE WITH BREATH VALVE,2PCS, DIAMETER 500MM.		WELDING STANDARD:	ELDING ARE TO BE DONE BY QUALIFIED WELDER PER CABLE NATIONAL STANDARD
DISCHARGIN PIPE	3 OR 4 INCH RUBBER HOSE,2PCS,6M/EACH		TOP TANK WALK	COMMON OR SPECIAL DESIGN
CHASSIS
AXLES		2 OR 3 AXLES,13T/16T,BPW/FUWA/HUAJING BRAND
MAIN BEAM		Q345CARBON STEEL ,WELDING DESIGN
SUPPORT LEGS		JOSTOR CHINA BRAND 28T
SUSPENSION		MECHANICAL SUSPENSION/GERMANY OR AMERICA TYPE/AIR SUSPENSION
LEAF SPRING		90(W)MM*13(THICKNESS)*10 LAYER OR OTHER
BRAKING SYSTEM		WABCO RE6 RELAY VALVE;T30/30+T30 SPRING BRAKE CHAMBER,40L AIR CHAMBER
TIRE		12.00R22.5/31580R22.5/11.00R20/12.00R20 BRAND CAN BE OPTIONA
RIM		9.00-22.5/8.00-20/8.5-20 CHINA BRAND
KING PIN		2 OR 3.5 INCH BOLT-IN KING PIN
ABS		OPTIONAL
PAINTING		COMPLETE CHASSIS SAND BLASTING TO CLEAN RUST,1 COAT OF ANTICOR ROSIVE PRIME,2 COATS OF FINAL PAINT
ACCESSORIES		ONE TOOL BOX
SHIPPING TERMS		BY BULK CARGO,RORO OR 40HQ OR 40FT FR CONTAINER





Material Options
Available in Q345 carbon steel, 304/316L stainless steel, or 5083 aluminum alloy.



Number of Compartments
Supports single- to seven-compartment designs.



Loading and Unloading System
Available with top manway, bottom discharge valve, gear pump, or centrifugal pump.



Axles and Suspension
Available in 2- to 4-axle configurations, with mechanical or air suspension.



Coating and Insulation
Polyurethane anti-corrosion coating, epoxy coating, or thermal insulation are available.



Volume Range
Customizable volumes from 30,000L to 50,000L.







1. We have a professional design team and patented technology, using CAD and SolidWorks to optimize vehicle structures.

2. We implement digital production control throughout the entire process.

3. We produce over 15,000 units annually, with a delivery time of 15 days for standard vehicles and 30-45 days for customized vehicles.

4. We support both OEM and ODM services.





Q: What payment methods do you support?

A: We accept T/T, L/C, D/P, D/A, Money Gram, PayPal, Western Union, cash, and escrow.



Q: What is your packaging method?

A: We use standard export packaging.



Q: What is the typical delivery time?

A: Typically, delivery is within 30-60 business days after prepayment.



Q: How does an oil tank semi-trailer work?
A: It uses a tractor-trailer to pull a tank trailer. The tank stores fuel, and pump pressure is used to transfer the fuel from the tank to a designated container via a pipeline.



Q: What are its main applications?
A: It is primarily used for long-distance transportation of liquid fuels such as oil and diesel. It also serves gas station refueling, construction fuel supply, and fuel distribution for large factories.



Q: What precautions should be taken when installing an oil tank?
A: During installation, ensure that the tank is securely fastened to the trailer frame and that the joints are properly sealed. Ensure that the tank is level to prevent tilting that could affect transportation.



Q: What is its maintenance cycle?
A: Routine maintenance is performed weekly, including cleaning the exterior and inspecting the connections. A comprehensive overhaul is performed every six months, focusing on inspecting the tank's structural safety.
