13T Axle – Precision Engineered for Commercial Transport
Optimized for Mid-Range Load Capacity with Superior Efficiency
Our 13T axle delivers exceptional performance for dump trucks, tankers, and logistics trailers requiring reliable 13,000kg load-bearing capacity. Designed to meet DOT, EU 1230/2012, and GB/T 19056-2025 standards, this axle combines advanced materials engineering with smart monitoring technology for demanding transport operations.
Key Features & Benefits
1. Robust Engineering
Material Science:
- Forged 40Cr alloy steel with 780MPa tensile strength
- Case-hardened gear teeth (HRC 60-64) for 200,000km+ service life
Structural Integrity:
- 3D-scanned axle beams (0% crack tolerance)
- 5-year warranty against material defects
2. Intelligent Performance
Telematics-Ready Hub:
- Integrated load sensors (±1.5% accuracy)
- Wireless temperature/pressure monitoring
Efficiency Features:
- Low-viscosity oil system (15% friction reduction)
- Pre-installed ABS mounting points
3. Global Adaptability
Configuration Options:
- Air/mechanical suspension compatibility
- Drum or disc brake systems
Corrosion Protection:
- Multi-layer coating (zinc + epoxy + ceramic)
- 800-hour salt spray certified
Technical Specifications
- Wheel Track: 1,800-2,100mm
- Max Speed: 130km/h (with ABS)
- Weight: 420kg (including hubs)

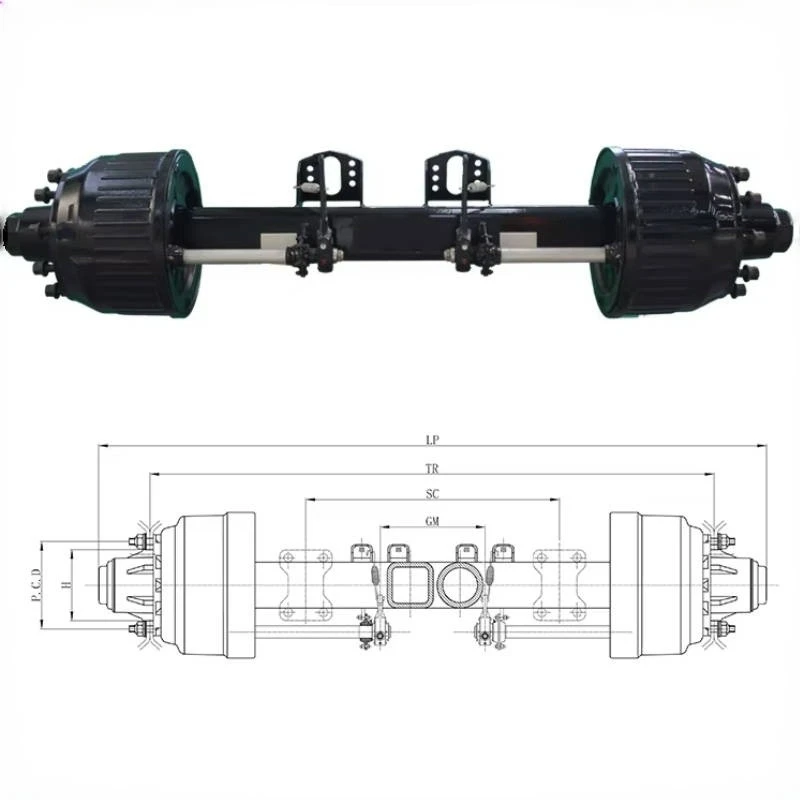

Parameter List
|
Model |
Capacit y (kg) |
Track (mm) |
Axle Tube(mm) |
PCD(mm) |
Total Length(mm) |
Recommended Wheel |
|
HT-Y11T |
11000 |
1820 |
0127 |
335 |
2165 |
7.5V-20 |
|
HT-Y13T |
13000 |
1840 |
0127 |
335 |
2185 |
7.5V-20 |
|
HT-F13T |
13000 |
1840 |
0150 |
335 |
2185 |
7.5V-20 |
|
HT-F14T |
14000 |
1840 |
0150 |
335 |
2185 |
7.5V-20 |
|
HT-F16T |
16000 |
1850 |
0150 |
335 |
2205 |
8.00V-20 |
|
HT-F20T |
20000 |
1850 |
0150 |
335 |
2252 |
8.00V-20 |
